Audi R8 4S KW Suspension – (HLS) Hydraulic Lift System

KW Suspension Hydraulic Lift System For The Audi R8 4S. Lift The Nose Of Your Vehicle By 45mm At The Push Of A Button. Includes KW Coilover V4. Higher Ground Clearance.

High-end super cars often come with minimal ground clearance. Even when driving an everyday road vehicle, you can often face the challenge of needing to cross speed bumps or steep driveways. This helps prevent scratches and damage to your front lip or side skirts.

With the KW Hydraulic Lift System (HLS), you can overcome those obstacles without any damage. The HLS system lifts the vehicle by up to 45 millimeters at speeds of up to 80 km/h with the press of a button. The KW HLS system is available as a complete suspension kit from KW Suspensions or as a retrofit solution for the original suspension of the car (depending on the vehicle type and application). Our latest revision is called HLS Evolution. It comes with a revised pump and is currently only available for lifting the front axle.

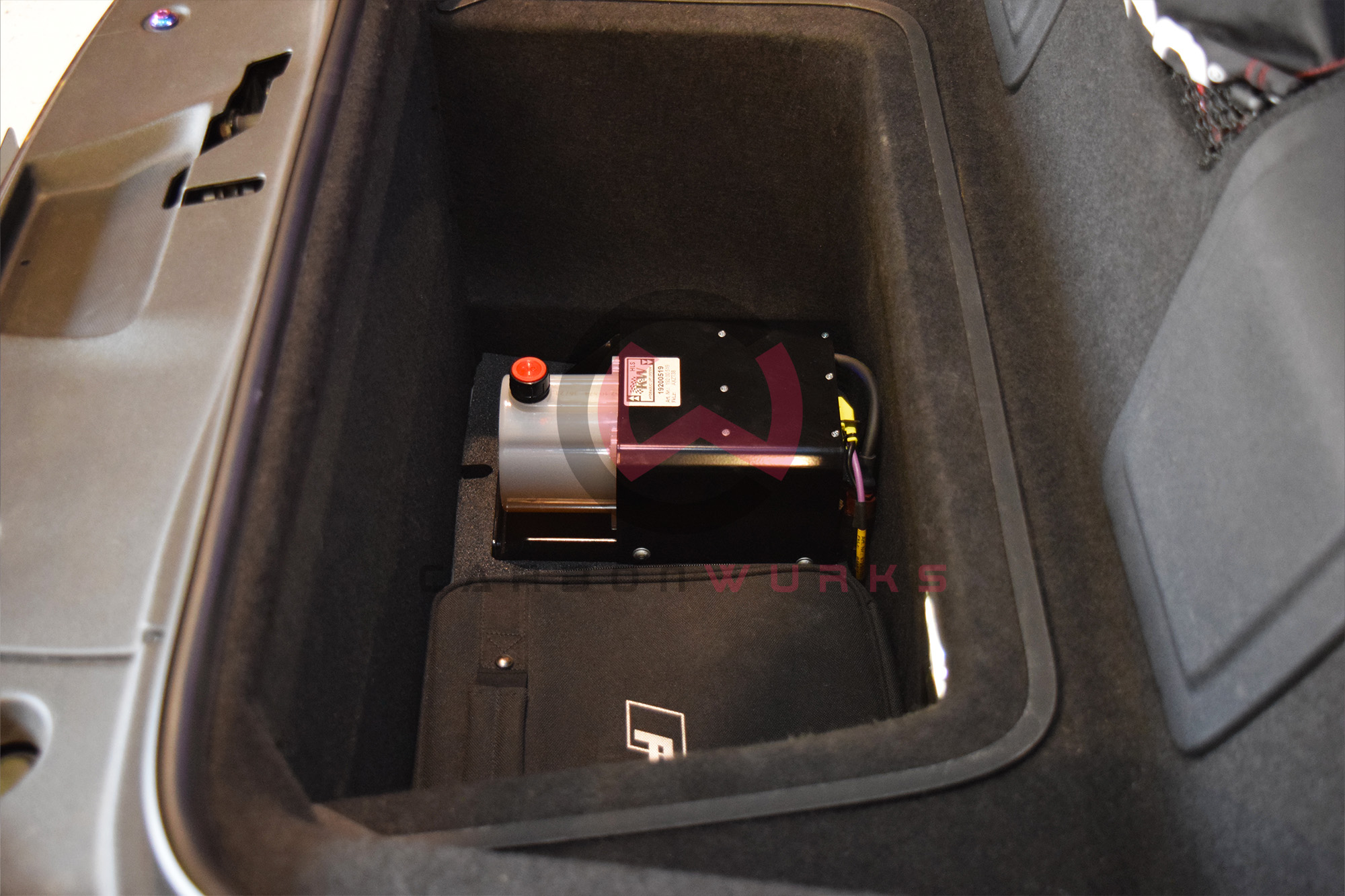

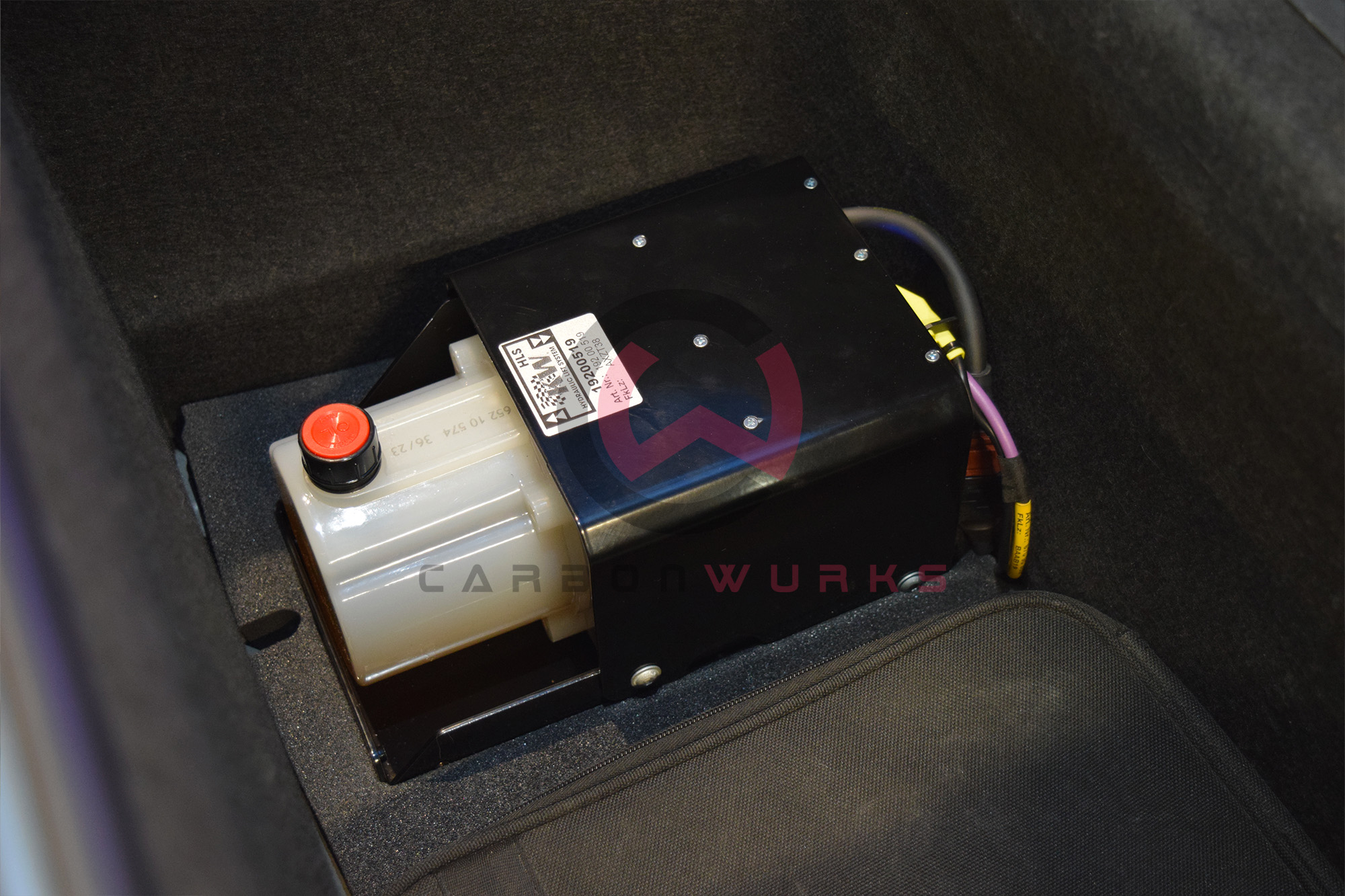

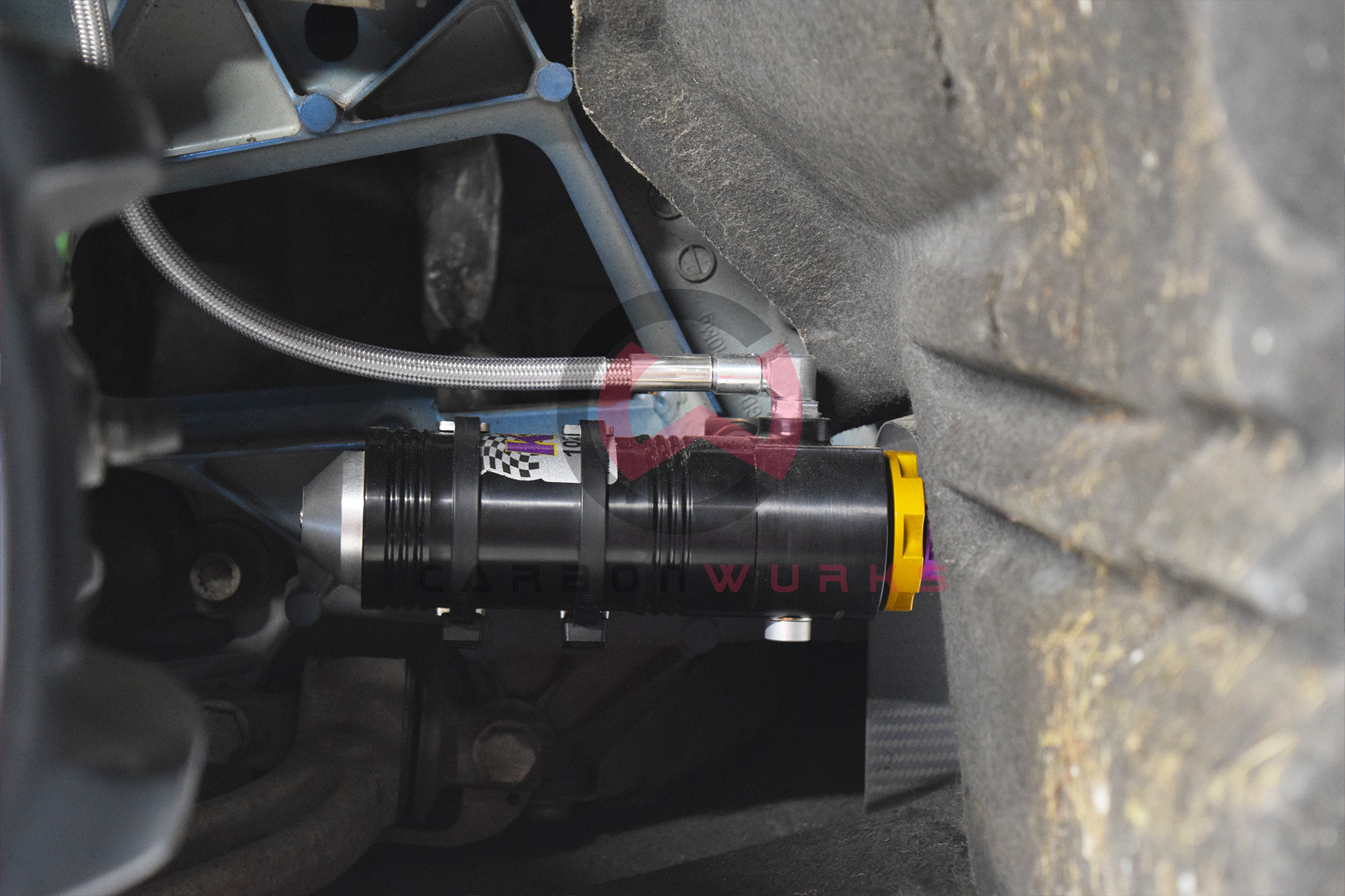

The new KW HLS Evolution is currently available for lifting the front axle. With the redesign, the new HLS now comes with a smaller pump unit. This allows the HLS 2 Evolution to be installed in the engine compartment without needing major modifications. It is no longer necessary to run cables into the boot as it was the case with the HLS 2. Additionally, they have saved 3-4 kilograms with the HLS 2 Evolution. Another advantage is that the new HLS system can usually be attached to existing mounting points with a slightly modified original bracket. The KW solenoid valve has been revised to be less susceptible to contamination.

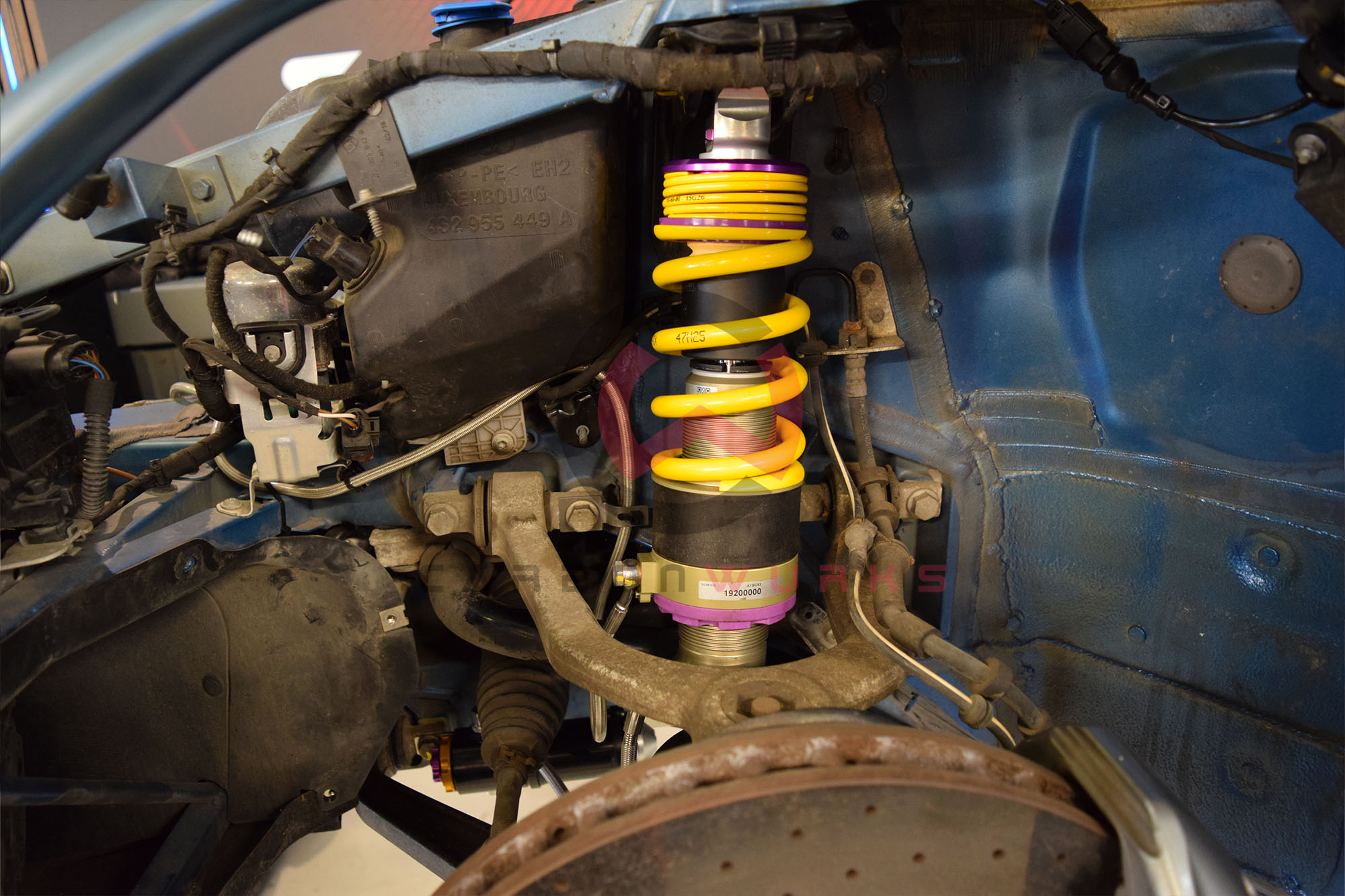

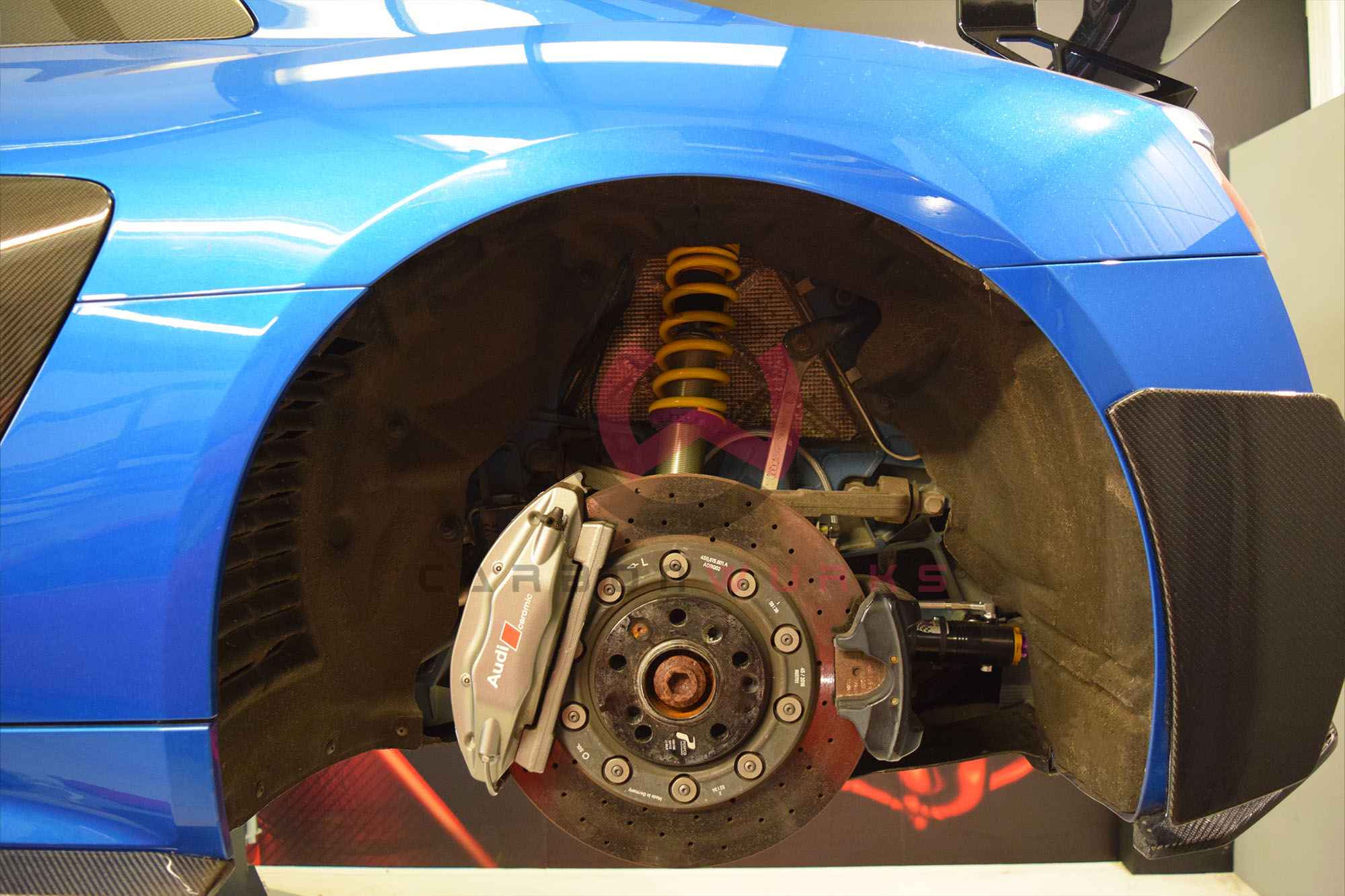

In combination with the KW coilovers, the Hydraulic Lift System from KW Suspensions allows a subtle lowering within the tested adjustment range. Thanks to high-quality and durable materials, individual lowering can be varied at any time. Dust protection elements and bump stops are already included, allowing maximum technical and legal lowering. With our KW HLS, customers experience sporty but harmonious driving without compromising on driving dynamics.

Top Features

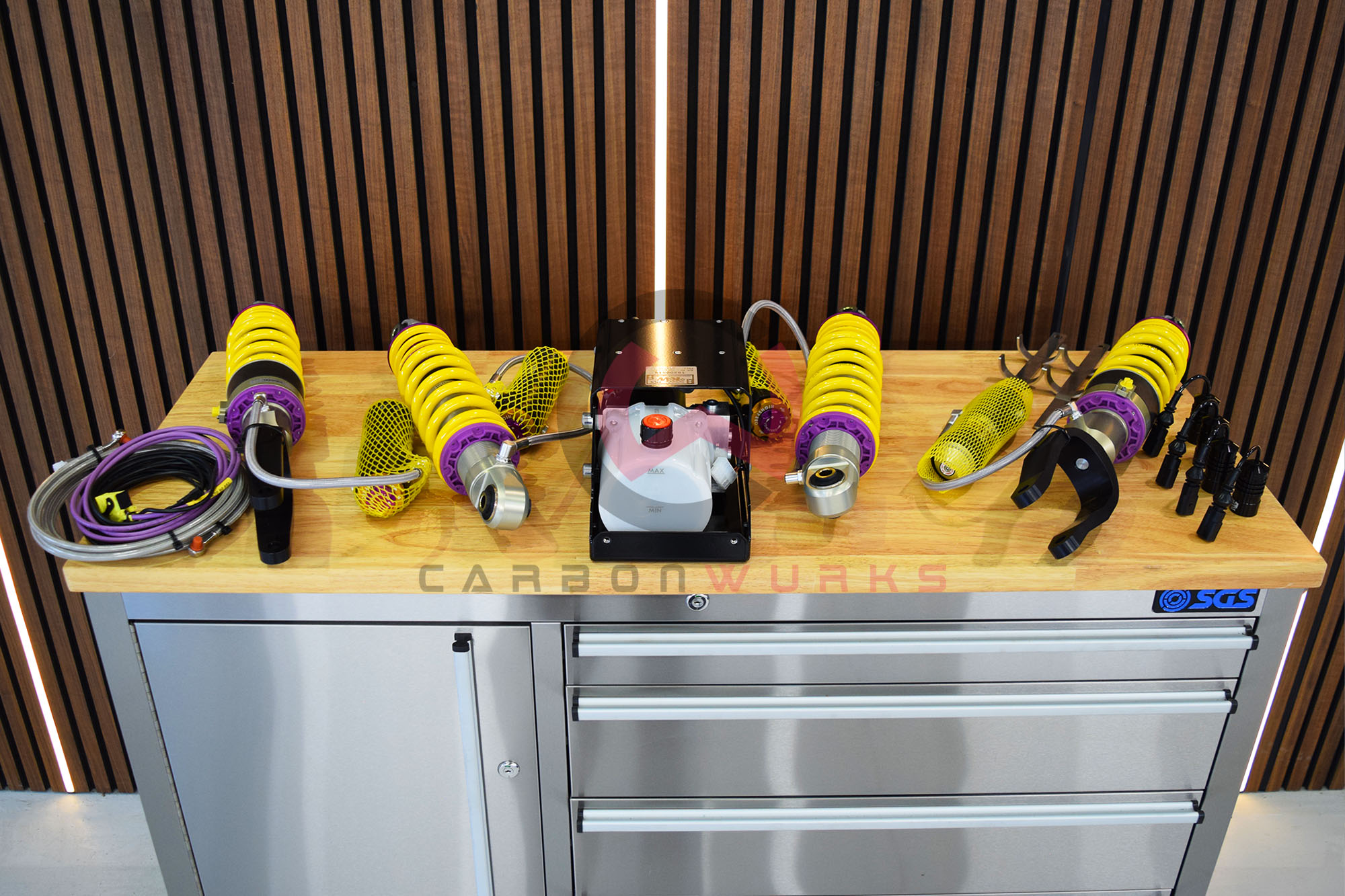

• Available as complete solution including KW coilovers (or as a conversion kit)

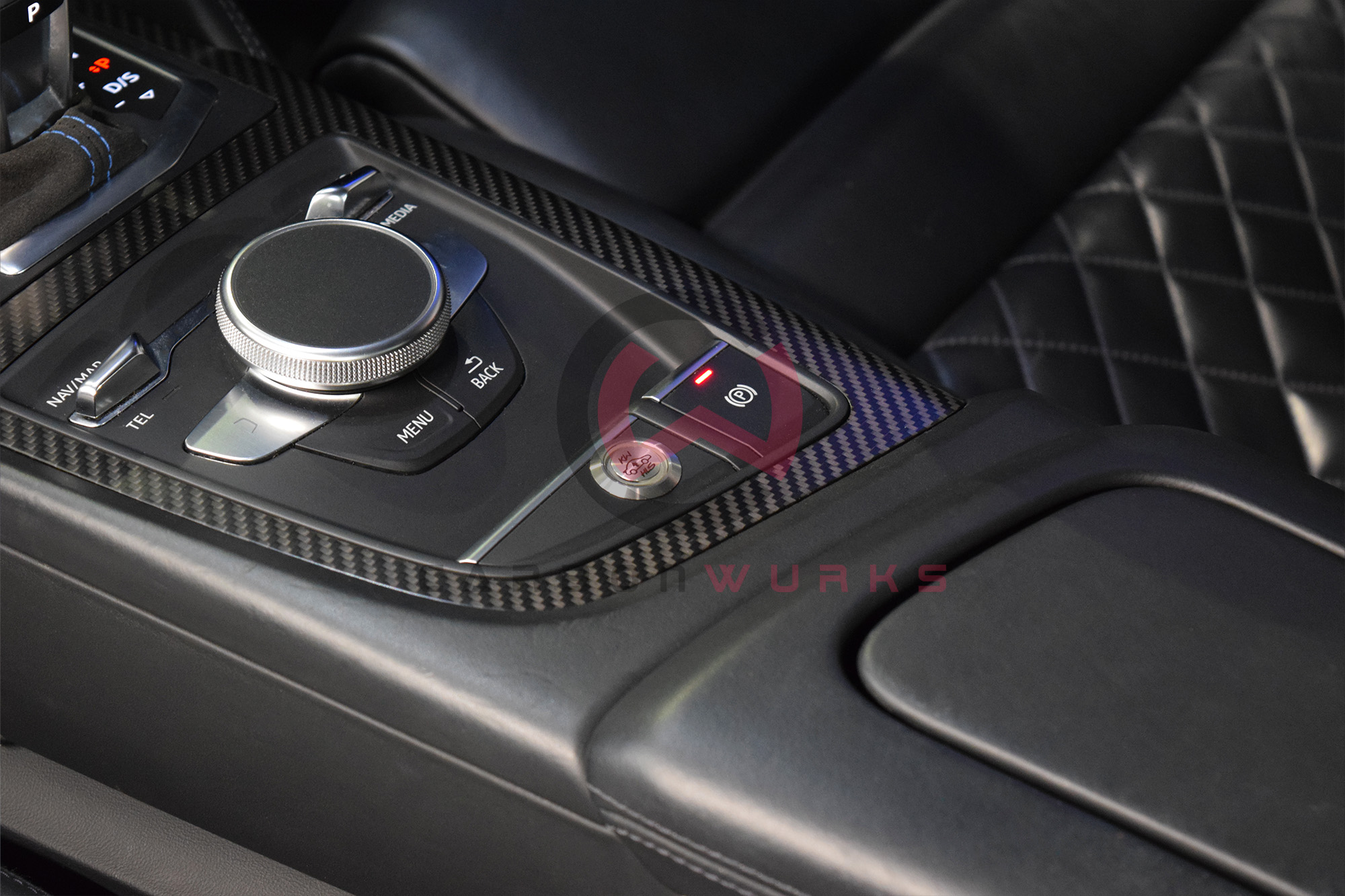

• Can be activated from inside the vehicle via an LED
• Control button or by an optional remote control
• Can be activated while driving (up to 50 mph)
• Fast lifting within 4-5 seconds (HLS 2)
• Absolutely corrosion resistant (coated cylinder components made of aluminum)

YouTube Video

This will be on our channel very soon

Specifications

• Damping adjustment: Rebound and Compression Damping
• Product Line: Street Performance
• Lowering FA/RA: 10-25mm/15-35mm
• Adjustment FA/RA: Thread/Thread
• Material: Aluminum
• Axle Load FA/RA: -945kg/-1185kg

Installation

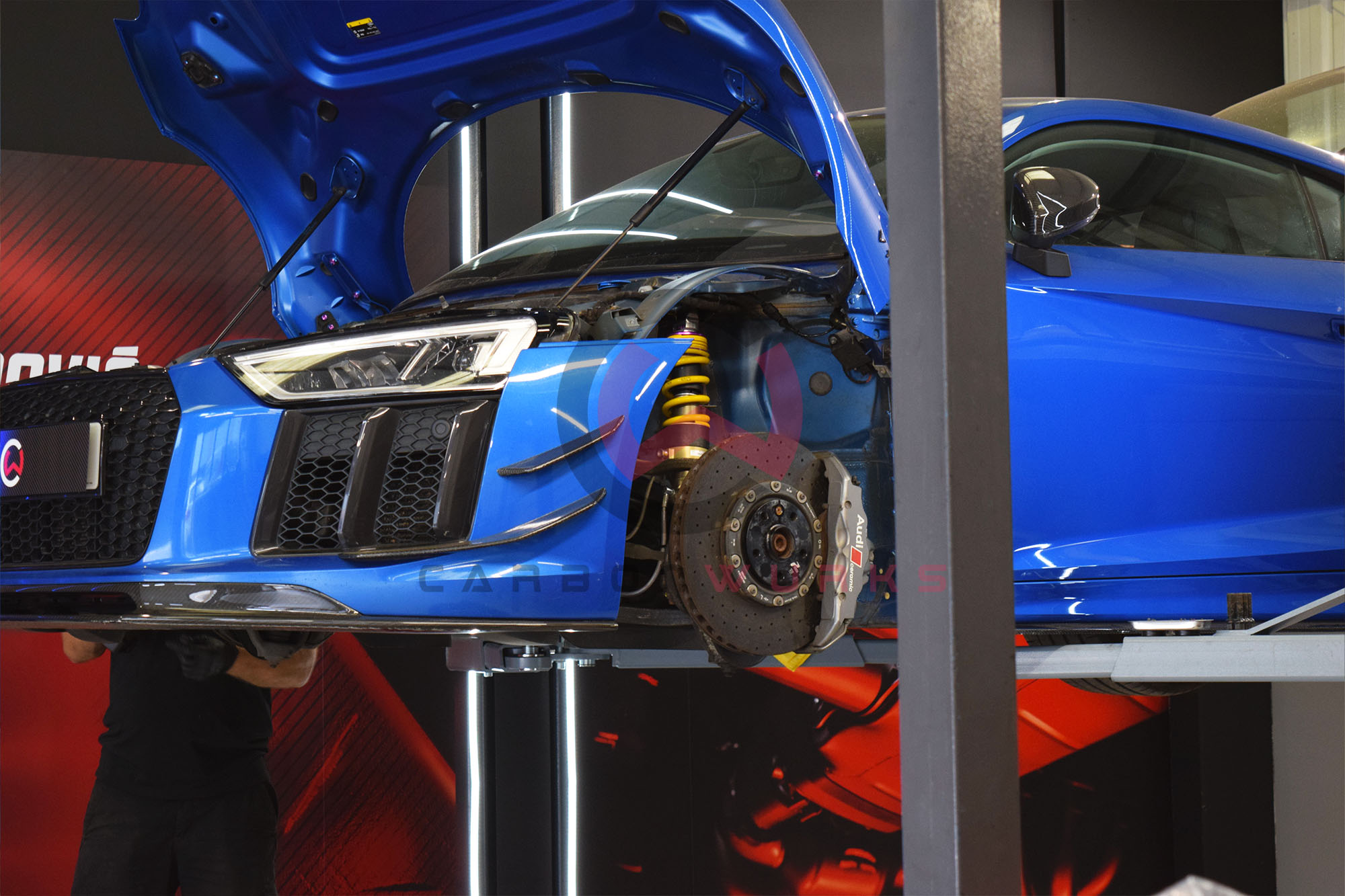

We’re able to offer installation of this system to your vehicle at our workshop here in Poole, Dorset.

Typically installation for a system like this should take approximately 4-6 hours to complete. As part of the installation a 4-wheel alignment must be carried out once the suspension has been completed.

Please get in touch for more info on the installation aspect and pricing.

Compatibility:

• Audi R8 (4S) Pre-Facelift Models – 2016 – 2019
• Audi R8 (4S) Facelift Models – 2020+

If you are unsure of fitment, please get in touch with us before purchasing. If you would like an up to date stock level check, please do get in touch.

Please Note:

• Height adjustable on the front and rear axles (threaded strut housings)
• For cars which have electronic dampers, make sure they are shut down. Specific electronical damper shut-downs are available from KW. Please check our accessories list

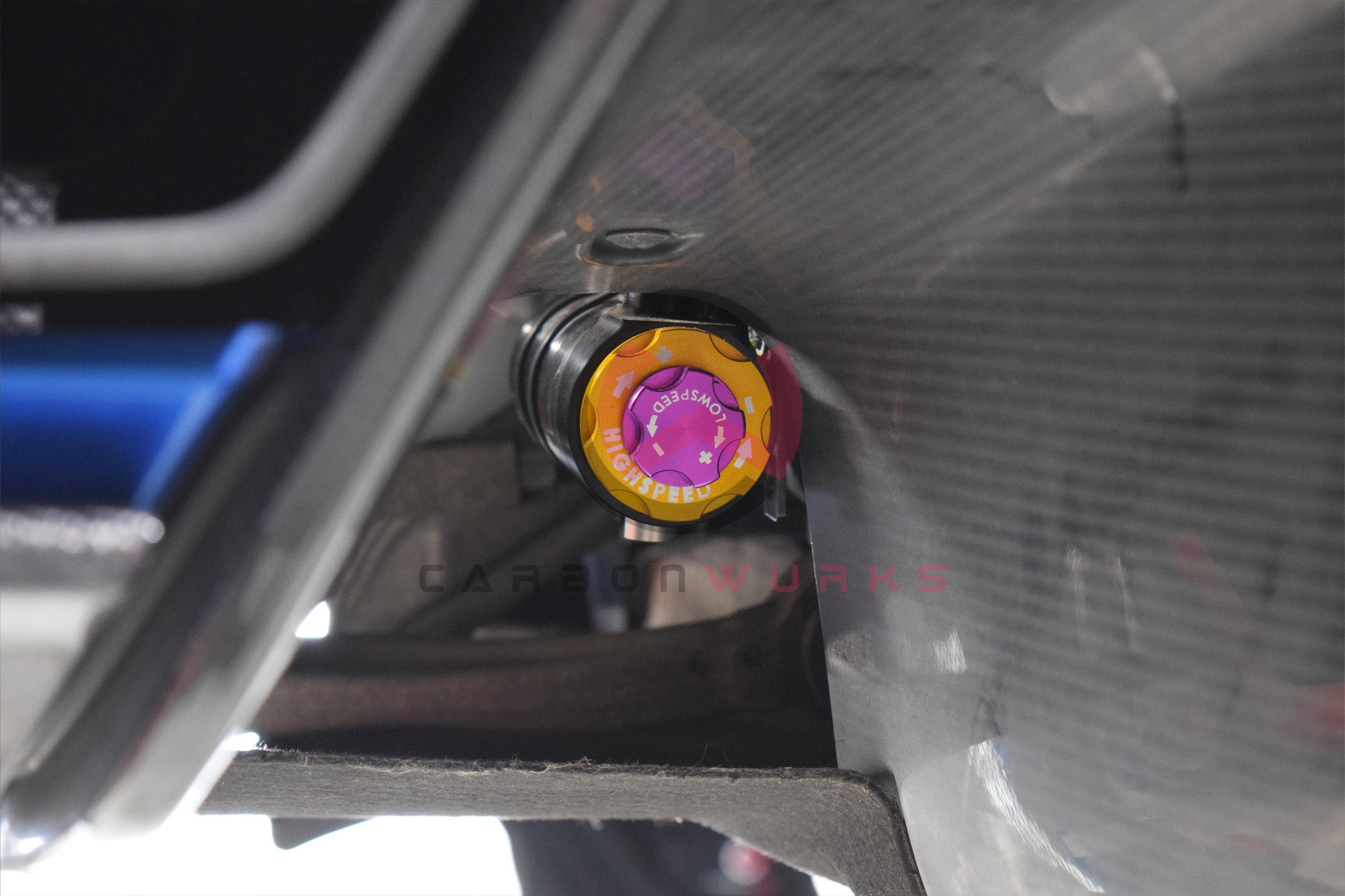

• Dampers are adjusted by easily operating adjustment wheels. Rebound is only adjustable if the top of the piston rod is accessible. This will depend on the vehicle construction.
• Aluminium suspensions struts
