Mini Cooper F5X Eventuri Cold Air Intake (With Carbon Scoop) – Plastic or Carbon Option

Upgrade Your Mini F5X Cooper S or JCW With The Eventuri Carbon Fibre Cold Air Take. Increased Performance & Air Flow! Better Sound!

We do hold this intake in stock but on occasion can run out. If lead time is important, please do get in touch to check before purchasing otherwise this may come with a 4-6 week lead time.

Fitment: LCI and Pre-LCI F5X Mini Cooper S, JCW, Clubman S, Clubman JCW

Available in Full Carbon Fiber and Plastic with Carbon scoop.

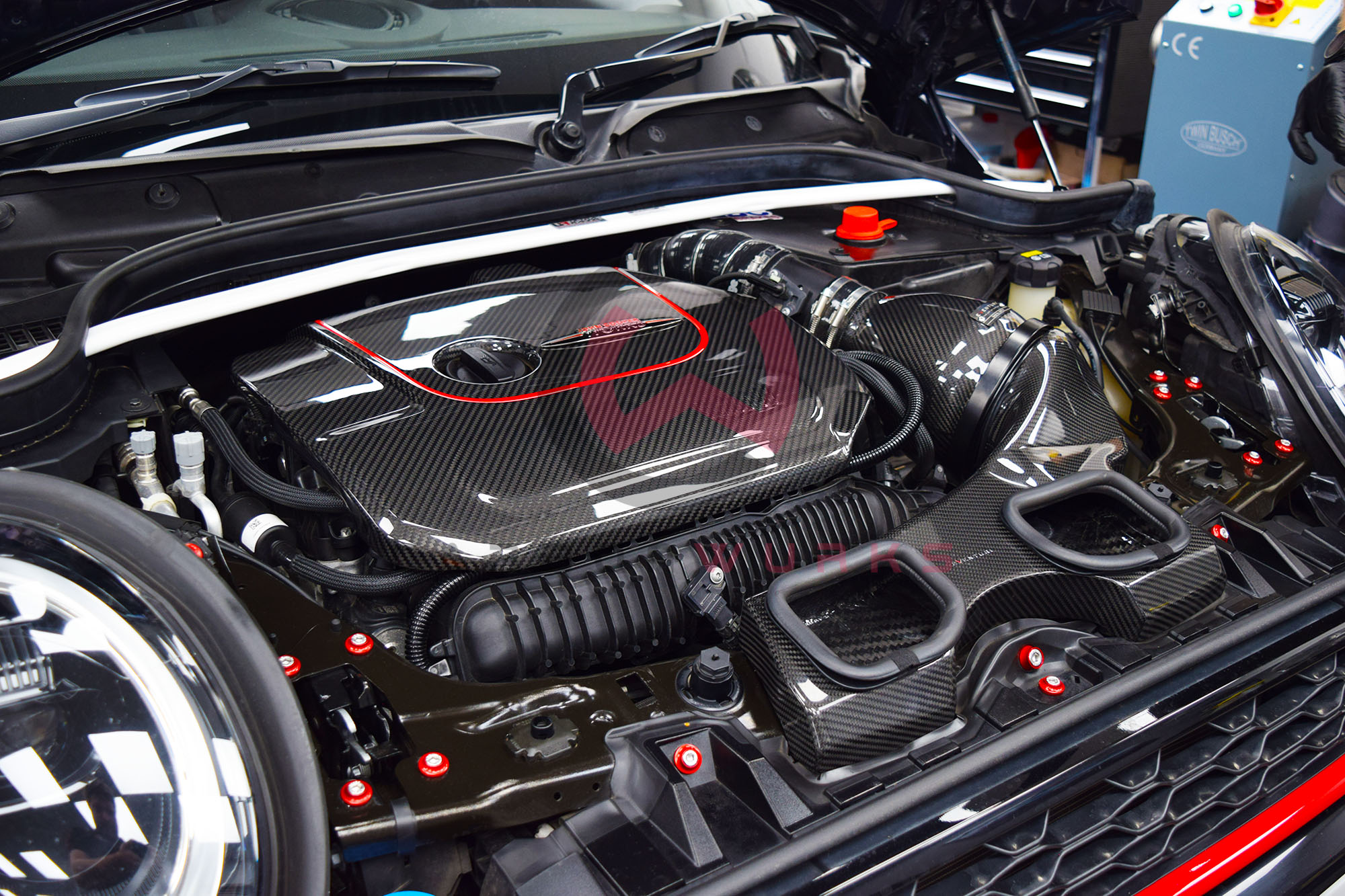

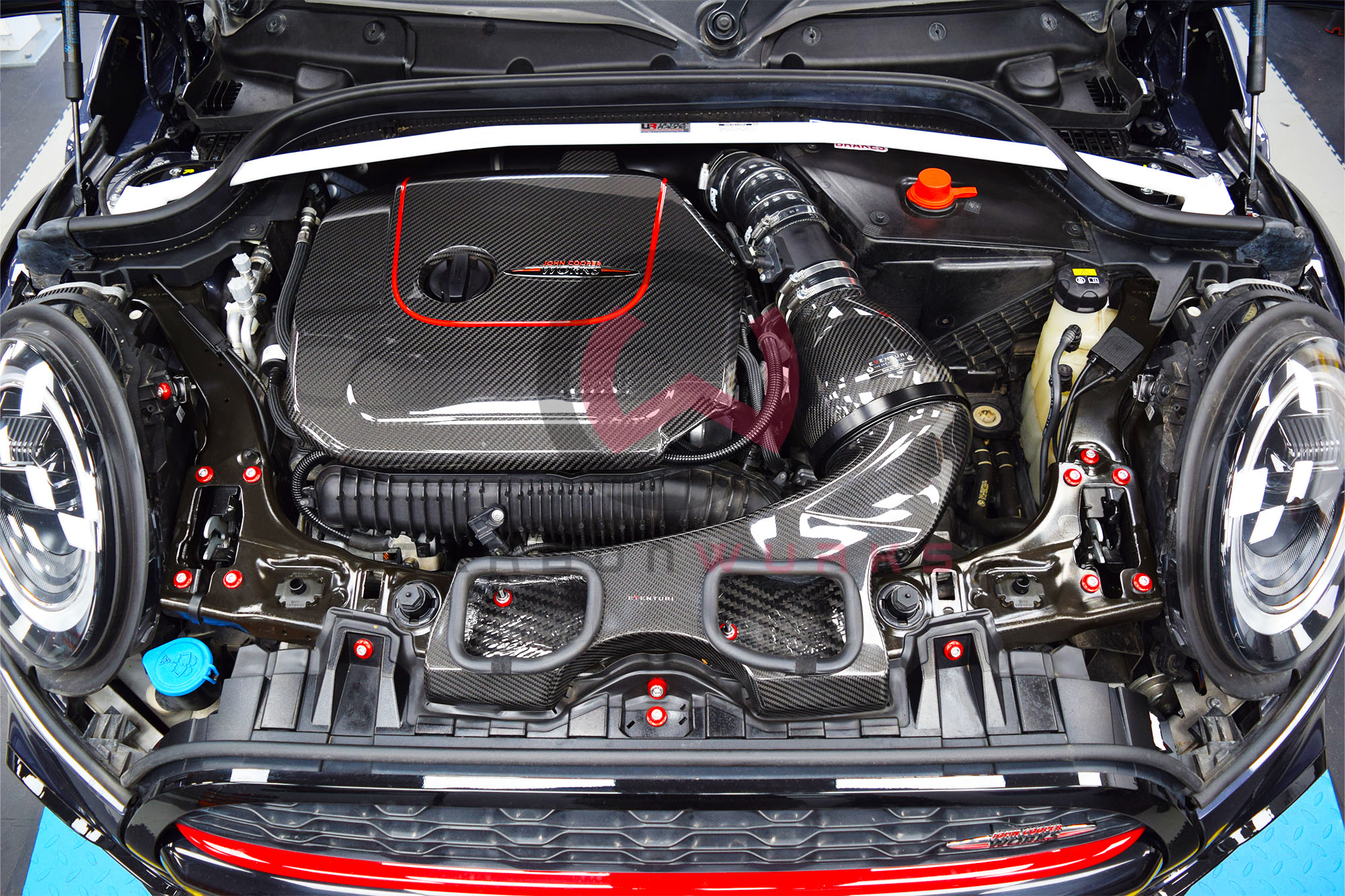

The F56 MINI Eventuri intake system is another example of our “Complete System” principal. It is a sealed system which ensures that the turbo does not draw hot air from the engine bay but enhanced with a functional bonnet scoop which forces ambient air into the intake duct. This duct has a larger internal volume than the stock version and also draws air from the stock location above the radiator. The combination of a sealed system with an air scoop results in lower intake temperatures than the stock airbox and avoids heat soak which is a common issue especially on higher powered MINIs. To ensure the smoothest flow possible we use our Patented filter housing coupled with a CNC machined MAF tube to ensure the smoothest possible flow to the turbo.

The Eventuri Difference

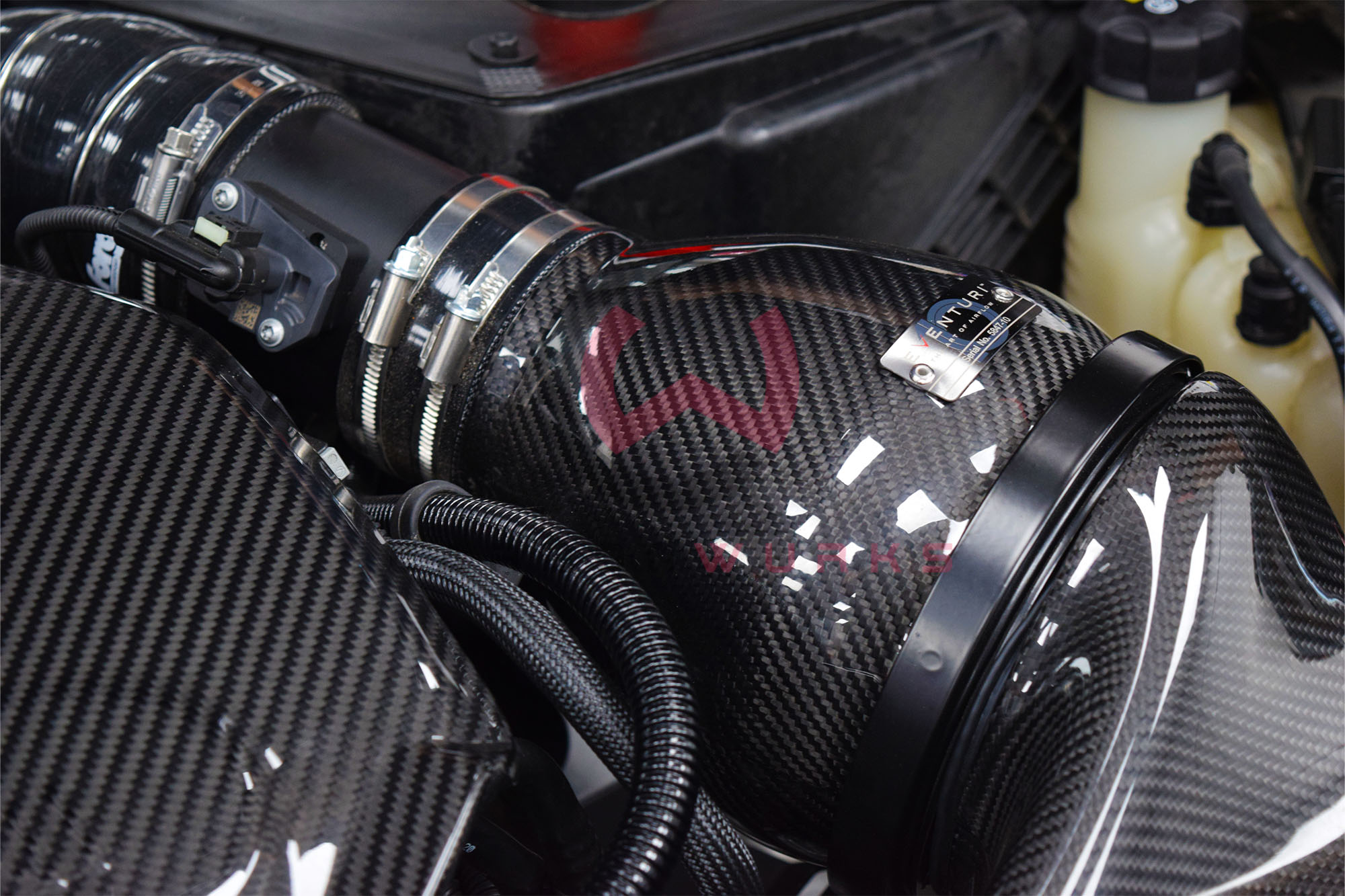

The F56 MINI Eventuri system uses our Patented Carbon fibre Housing which provides an aerodynamically efficient airflow path from the filter to the turbo. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect and maintains laminar flow conditions to reduce the drag on the turbo.

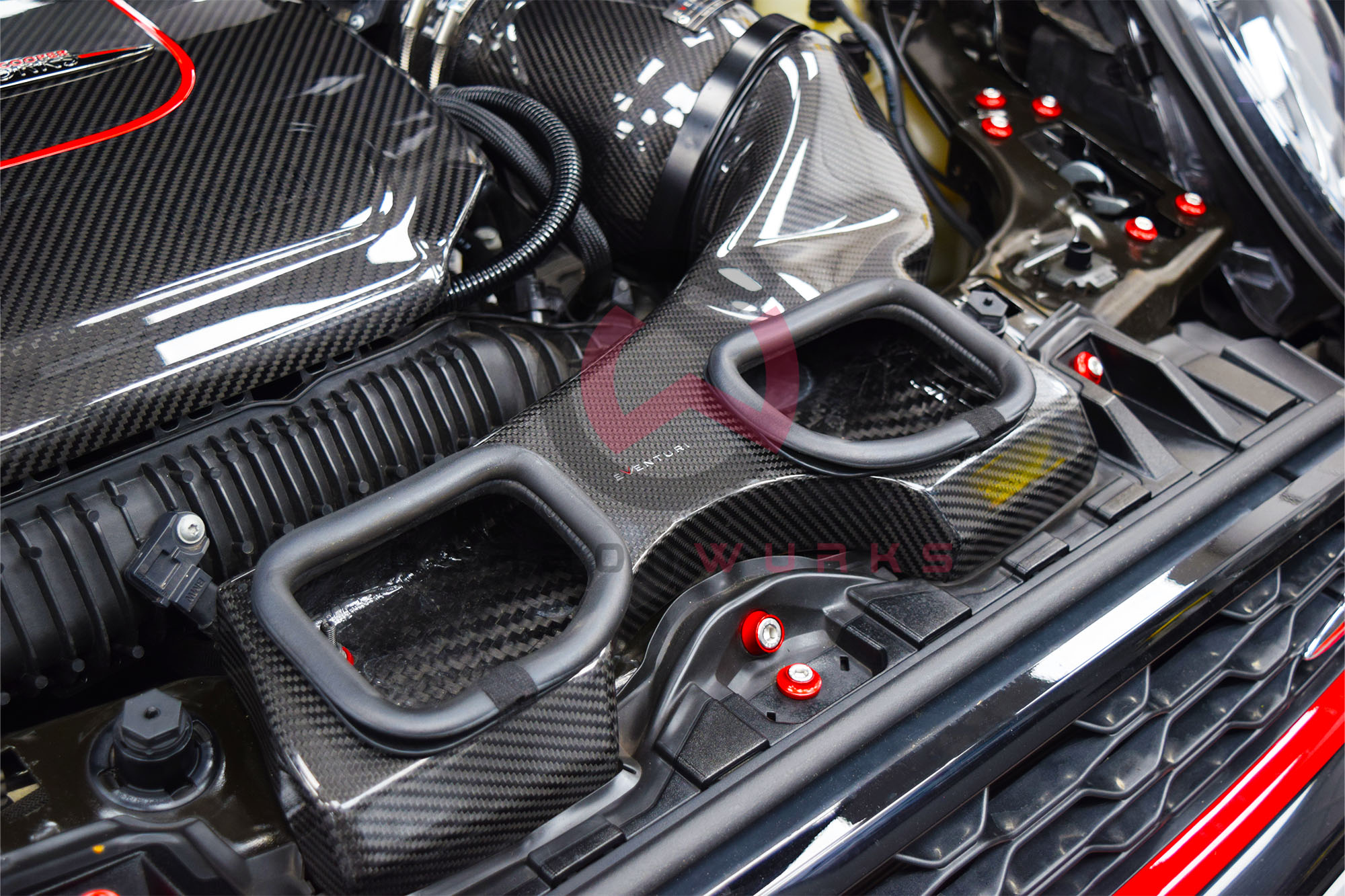

Carbon Bonnet Scoop

The OEM intake system draws in air from behind the front grill, above the radiator. The openings for the intake of ambient air are relatively small and therefore can lead to heat soak of the intake especially on a tuned Mini. The OEM bonnet scoop does not provide air directly to the intake and since the bonnet already has 2 cut-outs under the scoop, we decided to utilise this feature and redevelop the scoop. Our scoop is a direct replacement of the OEM part and clicks into place using the same fastening method. It features 2 inlet ramps which guide external air through the existing cut-outs on the bonnet and into the inlet duct (see below). As the car speeds up, more air is forced into the duct keeping inlet temperatures to a minimum and avoiding the heat soak issue. The scoop has a redesigned profile with a longer top surface to cover the openings which also provides a more aggressive look. Crafted from 100% prepreg carbon fibre, the scoop provides an incredible aesthetic to the vehicle. To further enhance the aesthetic feature – we used a V-shaped split weave with the carbon to give a symmetrical profile which works well as the scoop sits in the middle of the bonnet.

There are 2 versions of this intake. 1 includes carbon fibre for the dual intake duct along with a carbon fibre filter housing. The other option is for these parts in plastic. Both kits will however offer the bonnet scoop in carbon fibre as standard.

Please note there is a difference with the MAF tube between models. Pre-LCI will have an oval sensor cut-out, the LCI models with have a rectangular sensor cut-out. Please check before purchasing to ensure you are ordering correctly for your car.

Carbonwurks produce matching engine covers for these carbon in forged or twill. These are available for both pre-lci and lci cars. To opt for these, please click the checkbox.

Top Features

• Carbon air intake for Mini Cooper, Mini Cooper S & JCW F5X
• Engine B48
• For year 2014+
• Direct bolt-on design no modification needed
• No remapping of ECU/DME needed
• Gloss Twill Carbon Fibre bonnet scoop
• Available in plastic or carbon fibre

Included in the box:

• 1x Carbon fibre or plastic venturi filter housing
• 1 x Bespoke high flow non-woven mesh, dry cone filter
• 1 x Carbon fibre inlet bonnet scoop
• 1 x Carbon fibre or plastic dual intake duct
• 1 x CNC machined & insulated MAF tube
• 1 x laser cut stainless steel bracket
• 1 x High quality silicon coupler

Installation

We’re happy to offer this system for installation at our workshop here in Poole, Dorset.

Installation of this system takes approximately 2 hours.

If you opt for Supply Only, we would highly recommend installation by a trained technician / mechanic with the relevant BMW experience.

Compatibility:

Suitable for the Mini Cooper S & Mini Cooper JCW (2.0 Litre)

• F5X – Cooper S  (2014–present)
• F5X – JCW (2014–present)

Please Note:

• If you are unsure of fitment, please get in touch with us before purchasing. If you would like an up to date stock level check, please do get in touch.
• You must double check which type of MAF sensor your vehicle has prior to ordering as this will influence the kit that is sent to you (Also if you choose the optional engine cover – last 2 images).
